Regression: The First Part

PSYC 640 - Fall 2023

Dustin Haraden, PhD

Last Time

• Group Work
• Correlation
  • Comparing interrelationship of variables (Pearson & Spearman)
  • Interpreting
  • Making pretty tables

Today…

Regression

• Why use regression?

• One equation to rule them all

Today…

Regression

• Why use regression?

• One equation to rule them all

  • Ordinary Least Squares

  • Interpretation

#Don't know if I'm using all of these, but including theme here anyways
library(tidyverse)
library(rio)
library(broom)
library(psych)


#Remove Scientific Notation
options(scipen=999)

Overview of Regression

Regression is a general data analytic system

• Lots of things fall under the umbrella of regression

• This system can handle a variety of forms of relations and types of variables

The output of regression includes both effect sizes and statistical significance

We can also incorporate multiple influences (IVs) and account for their intercorrelations

Uses for regression

• Adjustment: Take into account (control) known effects in a relationship

• Prediction: Develop a model based on what has happened previously to predict what will happen in the future

• Explanation: examining the influence of one or more variable on some outcome

Regression Equation

With regression, we are building a model that we think best represents the data at hand

At the most simple form we are drawing a line to characterize the linear relationship between the variables so that for any value of x we can have an estimate of y

\[ Y = mX + b \]

• Y = Outcome Variable (DV)

• m = Slope Term

• X = Predictor (IV)

• b = Intercept

Regression Equation

Overall, we are providing a model to give us a “best guess” on predicting

Let’s “science up” the equation a little bit:

\[ Y_i = b_0 + b_1X_i + e_i \]

This equation is capturing how we are able to calculate each observation ( \(Y_i\) )

\[ \hat{Y_i} = b_0 + b_1X_i \]

This one will give us the “best guess” or expected value of \(Y\) given \(X\)

Regression Equation

There are two ways to think about our regression equation. They’re similar to each other, but they produce different outputs.
\[Y_i = b_{0} + b_{1}X_i +e_i\]
\[\hat{Y_i} = b_{0} + b_{1}X_i\]
The model we are building by including new variables is to explain variance in our outcome

\(\hat{Y}\) signifies the fitted score – no error
The difference between the fitted and observed score is the residual (\(e_i\))
There is a different e value for each observation in the dataset

Expected vs. Actual

\[Y_i = b_{0} + b_{1}X_i + e_i\]

\[\hat{Y_i} = b_{0} + b_{1}X_i\]

\(\hat{Y}\) signifies that there is no error. Our line is predicting that exact value. We interpret it as being “on average”

Important to identify that that \(Y_i - \hat{Y_i} = e_i\).

\(\hat{Y}\) signifies the fitted score – no error

The difference between the fitted and observed score is the residual (\(e_i\))

There is a different e value for each observation in the dataset

OLS

• How do we find the regression estimates?

• Ordinary Least Squares (OLS) estimation

• Minimizes deviations

  • \[ min\sum(Y_{i} - \hat{Y} ) ^{2} \]

• Other estimation procedures possible (and necessary in some cases)

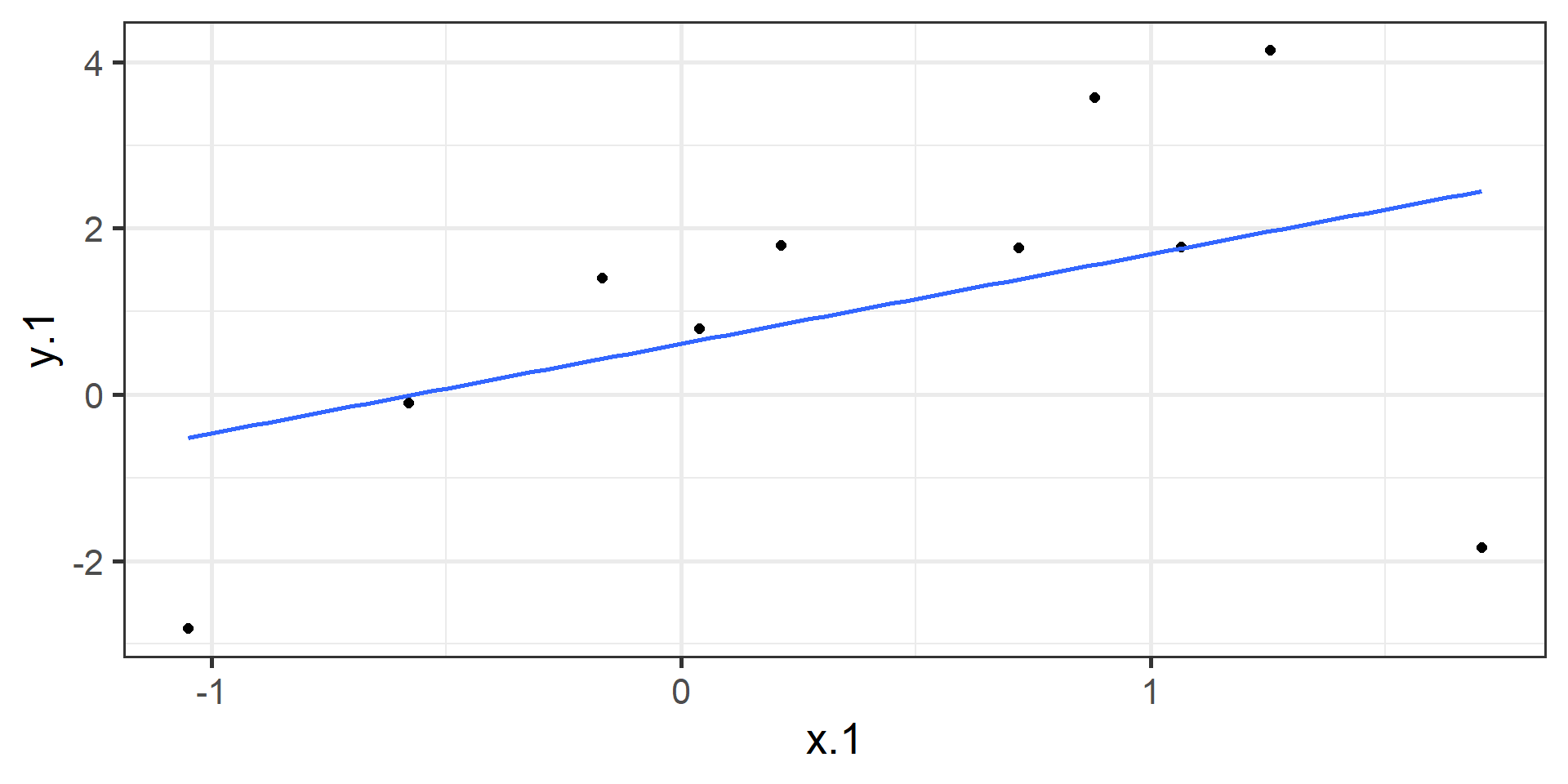

Code

set.seed(142)
x.1 <- rnorm(10, 0, 1)
e.1 <- rnorm(10, 0, 2)
y.1 <- .5 + .55 * x.1 + e.1
d.1 <- data.frame(x.1,y.1)
m.1 <- lm(y.1 ~ x.1, data = d.1)
d1.f<- augment(m.1)


ggplot(d1.f , aes(x=x.1, y=y.1)) +
    geom_point(size = 2) +
  geom_smooth(method = lm, se = FALSE) +
  theme_bw(base_size = 20)

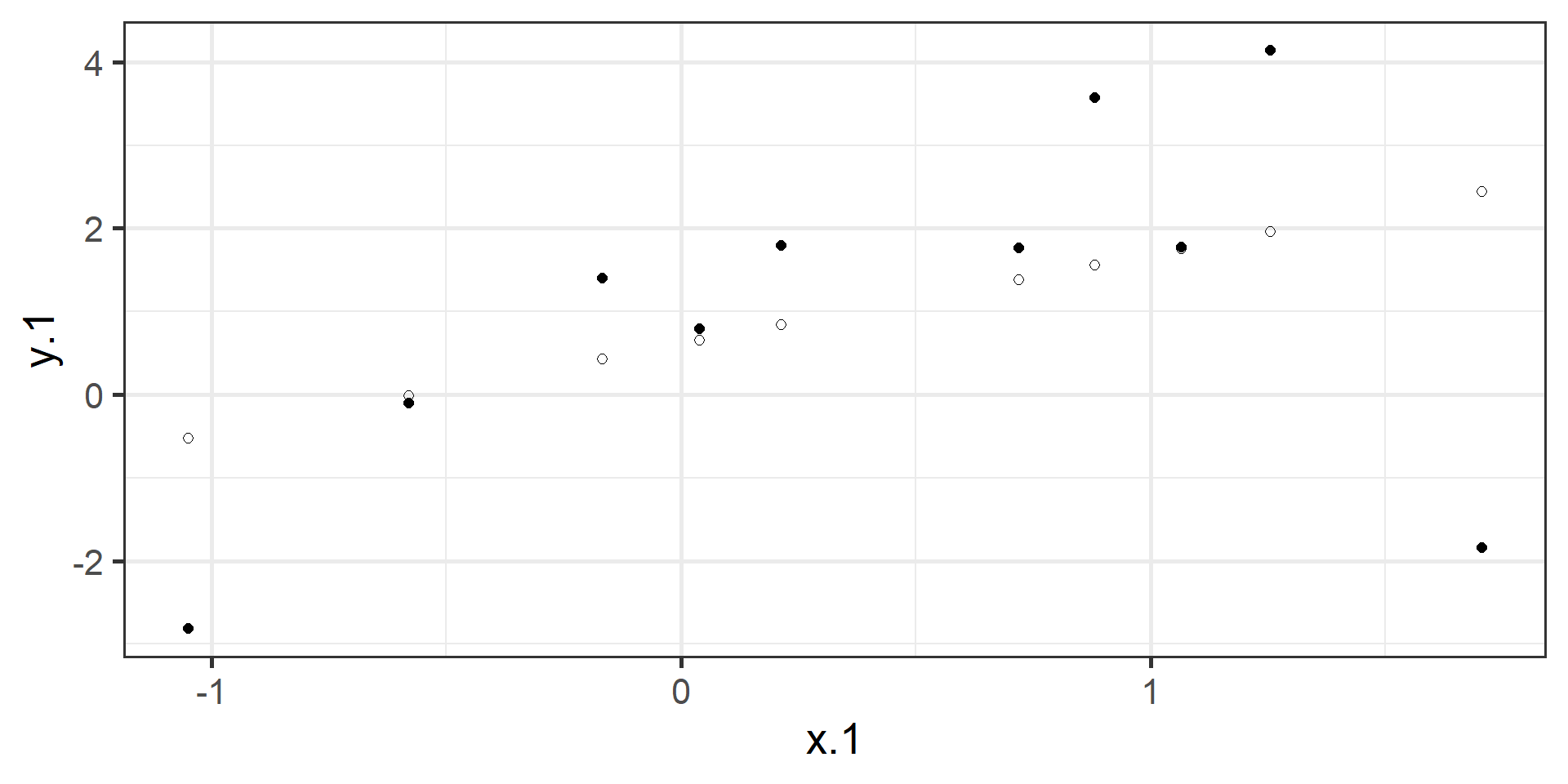

Code

ggplot(d1.f , aes(x=x.1, y=y.1)) +
    geom_point(size = 2) +
  geom_point(aes(y = .fitted), shape = 1, size = 2) +
  theme_bw(base_size = 20)

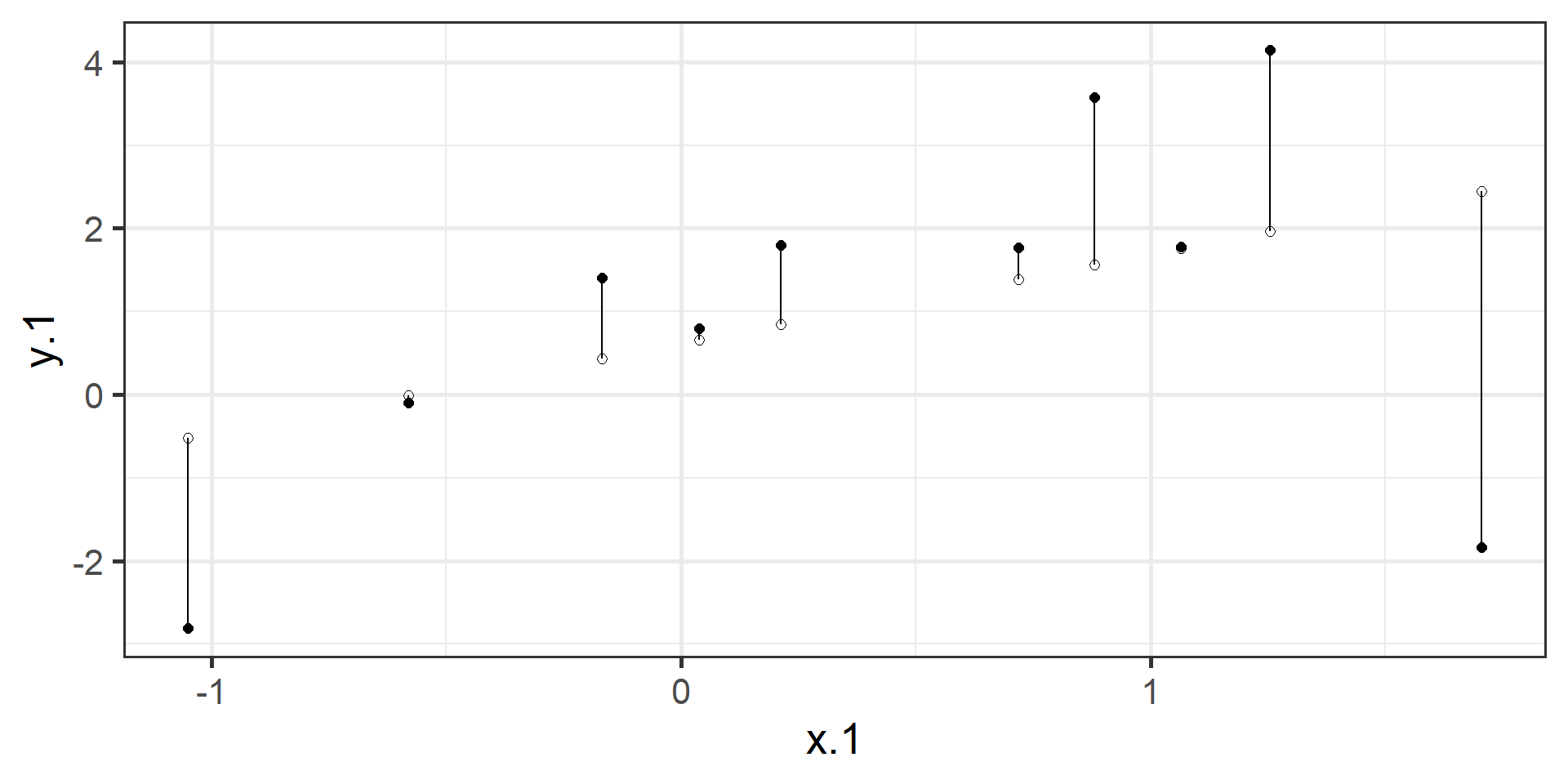

Code

ggplot(d1.f , aes(x=x.1, y=y.1)) +
    geom_point(size = 2) +
  geom_point(aes(y = .fitted), shape = 1, size = 2) +
  geom_segment(aes( xend = x.1, yend = .fitted))+
  theme_bw(base_size = 20)

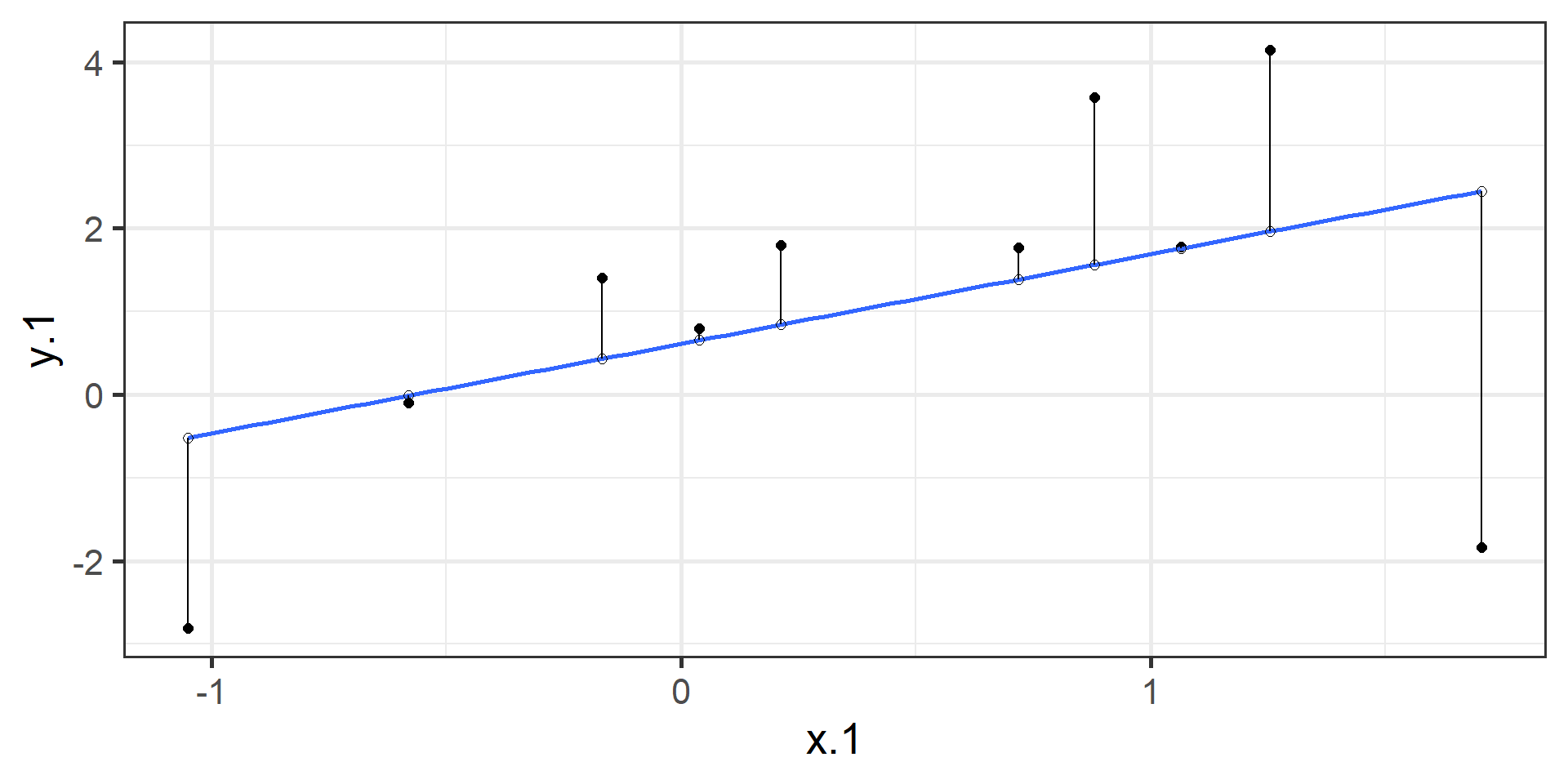

Code

ggplot(d1.f , aes(x=x.1, y=y.1)) +
    geom_point(size = 2) +
  geom_smooth(method = lm, se = FALSE) +
  geom_point(aes(y = .fitted), shape = 1, size = 2) +
  geom_segment(aes( xend = x.1, yend = .fitted))+
  theme_bw(base_size = 20)

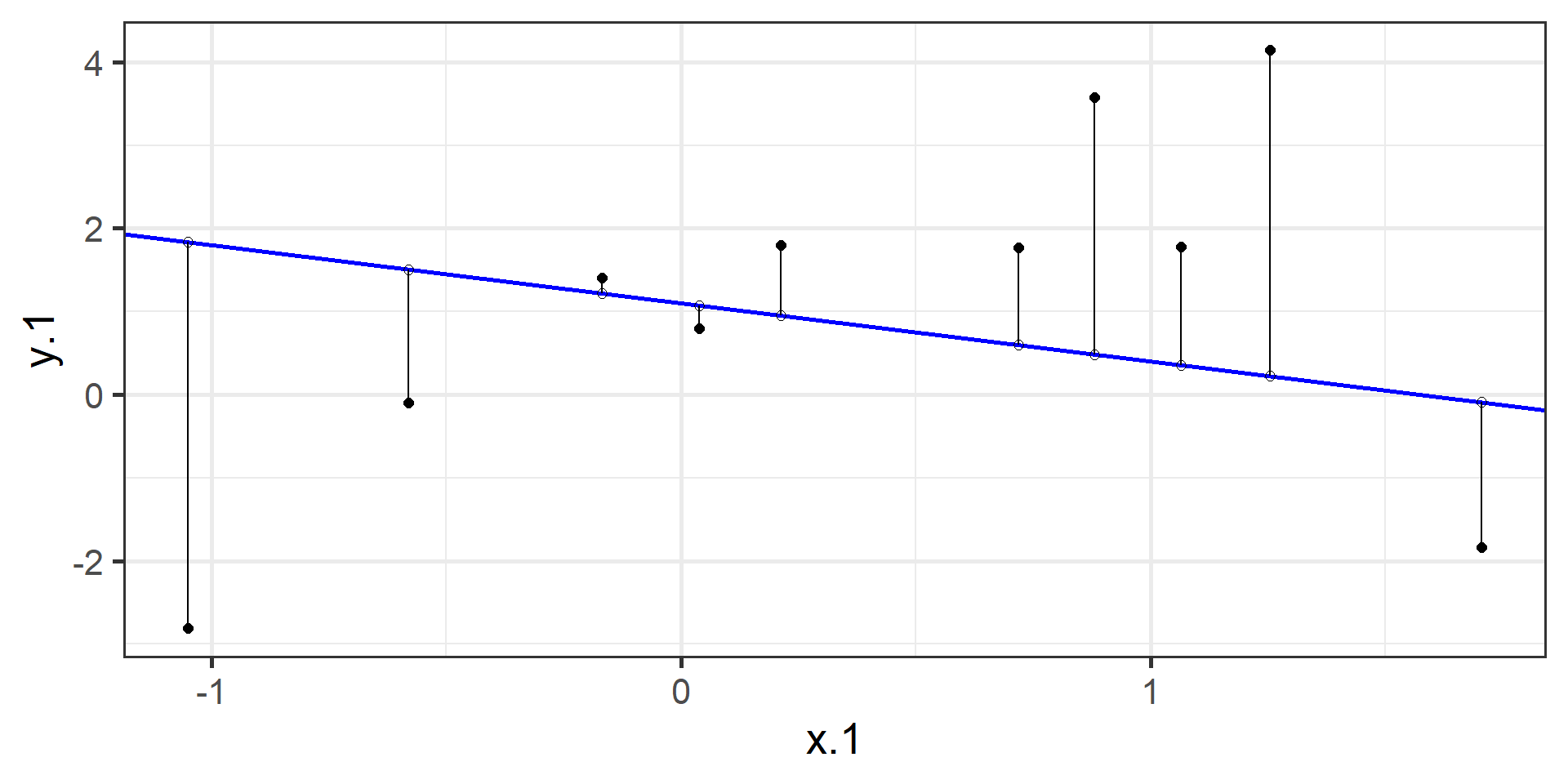

compare to bad fit

OLS

The line that yields the smallest sum of squared deviations

\[\Sigma(Y_i - \hat{Y_i})^2\] \[= \Sigma(Y_i - (b_0+b_{1}X_i))^2\] \[= \Sigma(e_i)^2\]

In order to find the OLS solution, you could try many different coefficients \((b_0 \text{ and } b_{1})\) until you find the one with the smallest sum squared deviation. Luckily, there are simple calculations that will yield the OLS solution every time.

Regression coefficient, \(b_{1}\)

\[b_{1} = \frac{cov_{XY}}{s_{x}^{2}} = r_{xy} \frac{s_{y}}{s_{x}}\]

What units is the regression coefficient in?

The regression coefficient (slope) equals the estimated change in Y for a 1-unit change in X

\[\Large b_{1} = r_{xy} \frac{s_{y}}{s_{x}}\]

If the standard deviation of both X and Y is equal to 1:

\[\Large b_1 = r_{xy} \frac{s_{y}}{s_{x}} = r_{xy} \frac{1}{1} = r_{xy} = \beta_{yx} = b_{yx}^*\]

Standardized regression equation

\[\Large Z_{y_i} = b_{yx}^*Z_{x_i}+e_i\]

\[\Large b_{yx}^* = b_{yx}\frac{s_x}{s_y} = r_{xy}\]

According to this regression equation, when \(X = 0, Y = 0\). Our interpretation of the coefficient is that a one-standard deviation increase in X is associated with a \(b_{yx}^*\) standard deviation increase in Y. Our regression coefficient is equivalent to the correlation coefficient when we have only one predictor in our model.

Estimating the intercept, \(b_0\)

• intercept serves to adjust for differences in means between X and Y

\[\hat{Y_i} = \bar{Y} + r_{xy} \frac{s_{y}}{s_{x}}(X_i-\bar{X})\]

• if standardized, intercept drops out

• otherwise, intercept is where regression line crosses the y-axis at X = 0

• Also, notice that when \(X = \bar{X}\) the regression line goes through \(\bar{Y}\)

\[b_0 = \bar{Y} - b_1\bar{X}\]

The intercept adjusts the location of the regression line to ensure that it runs through the point \(\large (\bar{X}, \bar{Y}).\) We can calculate this value using the equation:

\[\Large b_0 = \bar{Y} - b_1\bar{X}\]

Example

library(gapminder)
gapminder = gapminder %>% filter(year == 2007 & continent == "Asia") %>%
  mutate(log_gdp = log(gdpPercap))
describe(gapminder[,c("log_gdp", "lifeExp")], fast = T)

        vars  n  mean   sd   min   max range   se
log_gdp    1 33  8.74 1.24  6.85 10.76  3.91 0.22
lifeExp    2 33 70.73 7.96 43.83 82.60 38.77 1.39

cor(gapminder$log_gdp, gapminder$lifeExp)

[1] 0.8003474

If we regress lifeExp onto log_gdp:

r = cor(gapminder$log_gdp, gapminder$lifeExp)
m_log_gdp = mean(gapminder$log_gdp)
m_lifeExp = mean(gapminder$lifeExp)
s_log_gdp = sd(gapminder$log_gdp)
s_lifeExp = sd(gapminder$lifeExp)

b1 = r*(s_lifeExp/s_log_gdp)

[1] 5.157259

b0 = m_lifeExp - b1*m_log_gdp

[1] 25.65011

How will this change if we regress GDP onto life expectancy?

(b1 = r*(s_lifeExp/s_log_gdp))

[1] 5.157259

(b0 = m_lifeExp - b1*m_log_gdp)

[1] 25.65011

(b1 = r*(s_log_gdp/s_lifeExp))

[1] 0.1242047

(b0 = m_log_gdp - b1*m_lifeExp)

[1] -0.04405086

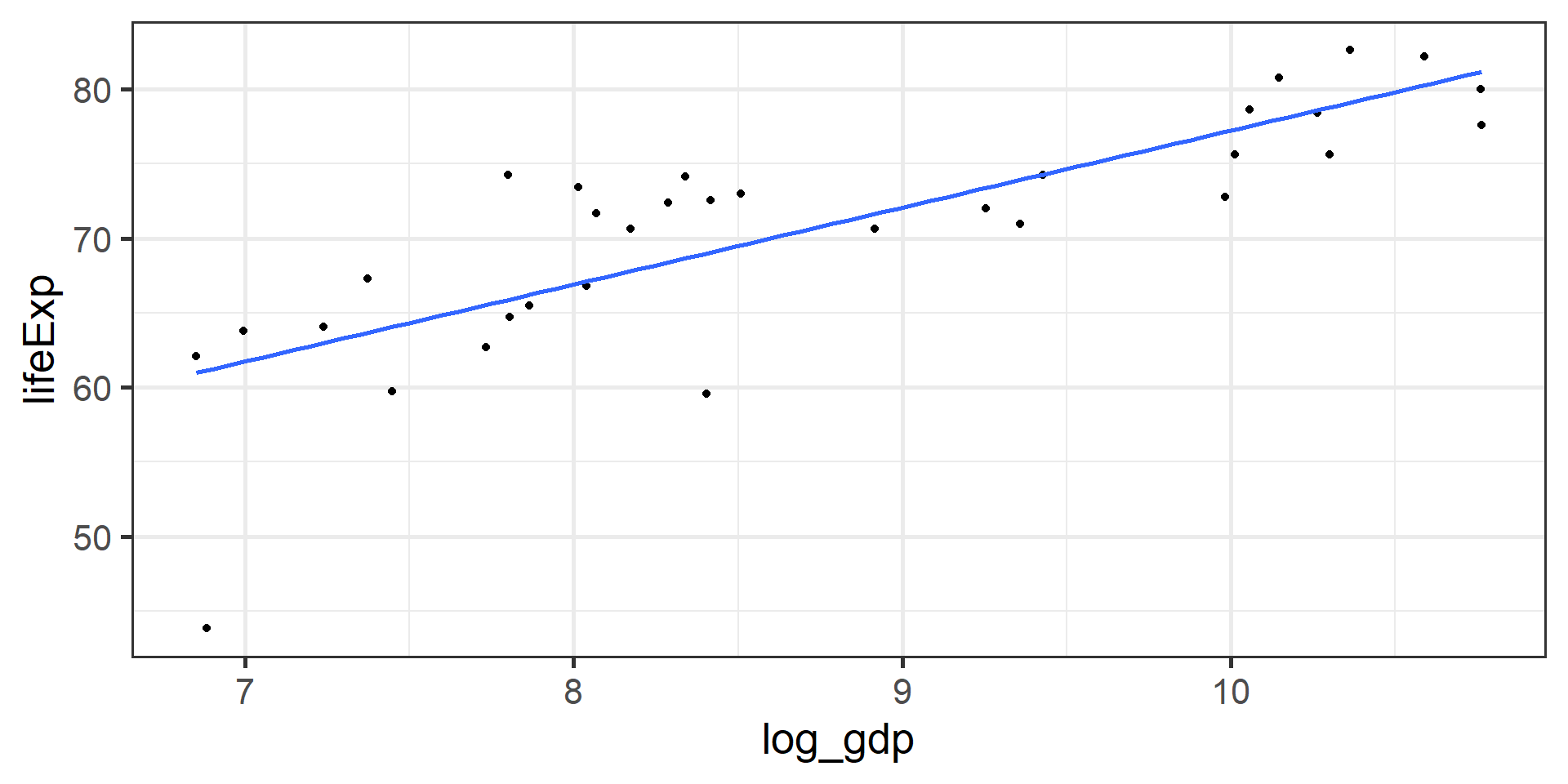

In R

fit.1 <- lm(lifeExp ~ log_gdp, data = gapminder)
summary(fit.1)

Call:
lm(formula = lifeExp ~ log_gdp, data = gapminder)

Residuals:
    Min      1Q  Median      3Q     Max
-17.314  -1.650  -0.040   3.428   8.370

Coefficients:
            Estimate Std. Error t value     Pr(>|t|)
(Intercept)  25.6501     6.1234   4.189     0.000216 ***
log_gdp       5.1573     0.6939   7.433 0.0000000226 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 4.851 on 31 degrees of freedom
Multiple R-squared:  0.6406,    Adjusted R-squared:  0.629
F-statistic: 55.24 on 1 and 31 DF,  p-value: 0.00000002263

Things to discuss

• Coefficient estimates
• Statistical tests (covered in more detail soon)

Data, fitted, and residuals

library(broom)
model_info = augment(fit.1)
head(model_info)

# A tibble: 6 × 8
  lifeExp log_gdp .fitted .resid   .hat .sigma .cooksd .std.resid
    <dbl>   <dbl>   <dbl>  <dbl>  <dbl>  <dbl>   <dbl>      <dbl>
1    43.8    6.88    61.1 -17.3  0.101    3.63 0.796       -3.76
2    75.6   10.3     78.8  -3.15 0.0802   4.89 0.0199      -0.676
3    64.1    7.24    63.0   1.08 0.0765   4.93 0.00224      0.233
4    59.7    7.45    64.1  -4.33 0.0646   4.86 0.0294      -0.923
5    73.0    8.51    69.5   3.43 0.0314   4.89 0.00836      0.718
6    82.2   10.6     80.3   1.94 0.100    4.92 0.00994      0.422

describe(model_info, fast = T)

           vars  n  mean   sd    min   max range   se
lifeExp       1 33 70.73 7.96  43.83 82.60 38.77 1.39
log_gdp       2 33  8.74 1.24   6.85 10.76  3.91 0.22
.fitted       3 33 70.73 6.37  60.98 81.16 20.19 1.11
.resid        4 33  0.00 4.77 -17.31  8.37 25.68 0.83
.hat          5 33  0.06 0.03   0.03  0.11  0.08 0.00
.sigma        6 33  4.84 0.23   3.63  4.93  1.30 0.04
.cooksd       7 33  0.04 0.14   0.00  0.80  0.80 0.02
.std.resid    8 33  0.00 1.02  -3.76  1.77  5.53 0.18

Point out the average of the residuals is 0, just like average deviation from the mean is 0.

The relationship between \(X_i\) and \(\hat{Y_i}\)

Code

model_info %>% ggplot(aes(x = log_gdp, y = .fitted)) +
  geom_point() + geom_smooth(se = F, method = "lm") +
  scale_x_continuous("X") + scale_y_continuous(expression(hat(Y))) + theme_bw(base_size = 30)

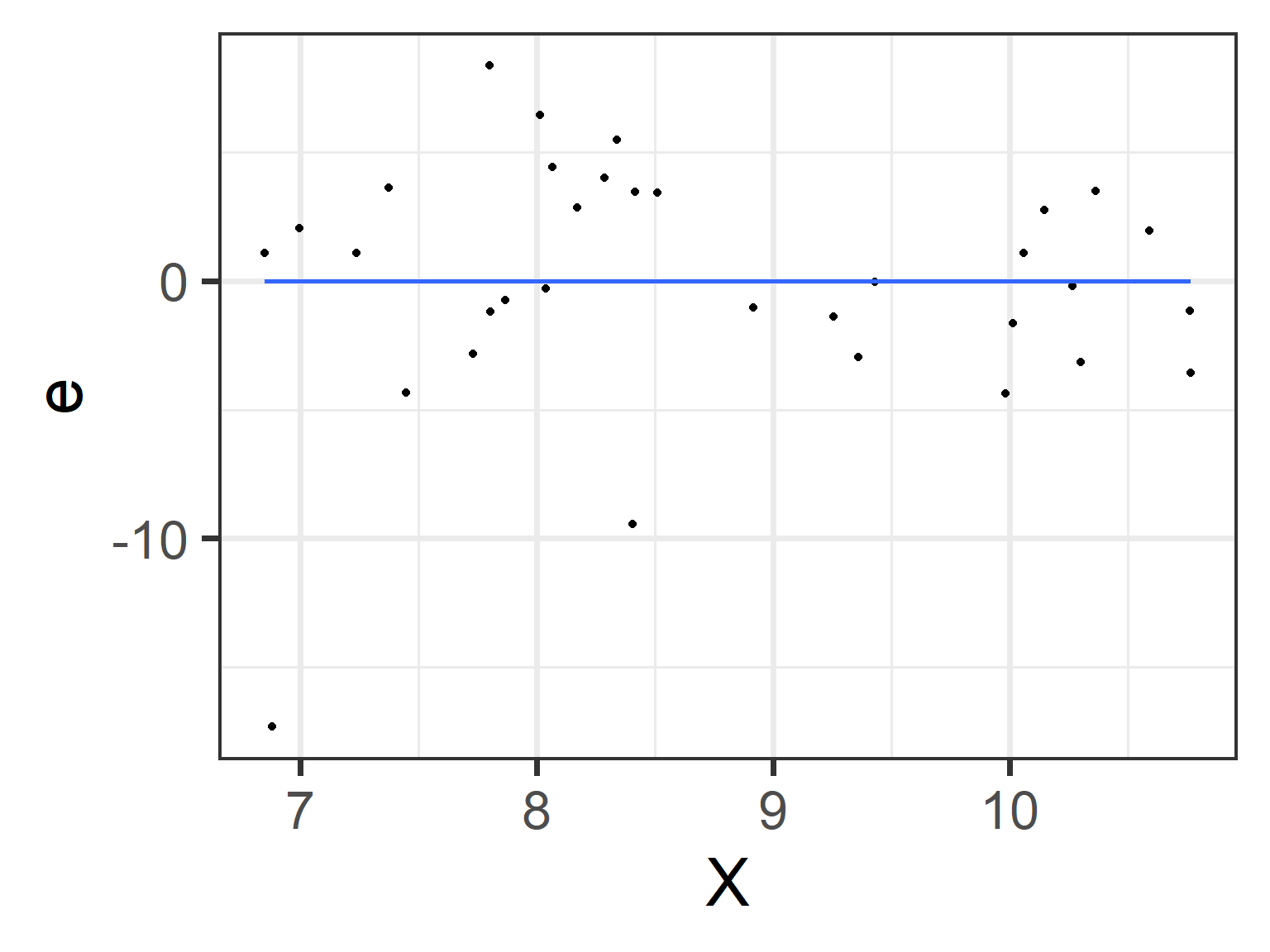

The relationship between \(X_i\) and \(e_i\)

Code

model_info %>% ggplot(aes(x = log_gdp, y = .resid)) +
  geom_point() + geom_smooth(se = F, method = "lm") +
  scale_x_continuous("X") + scale_y_continuous("e") + theme_bw(base_size = 30)

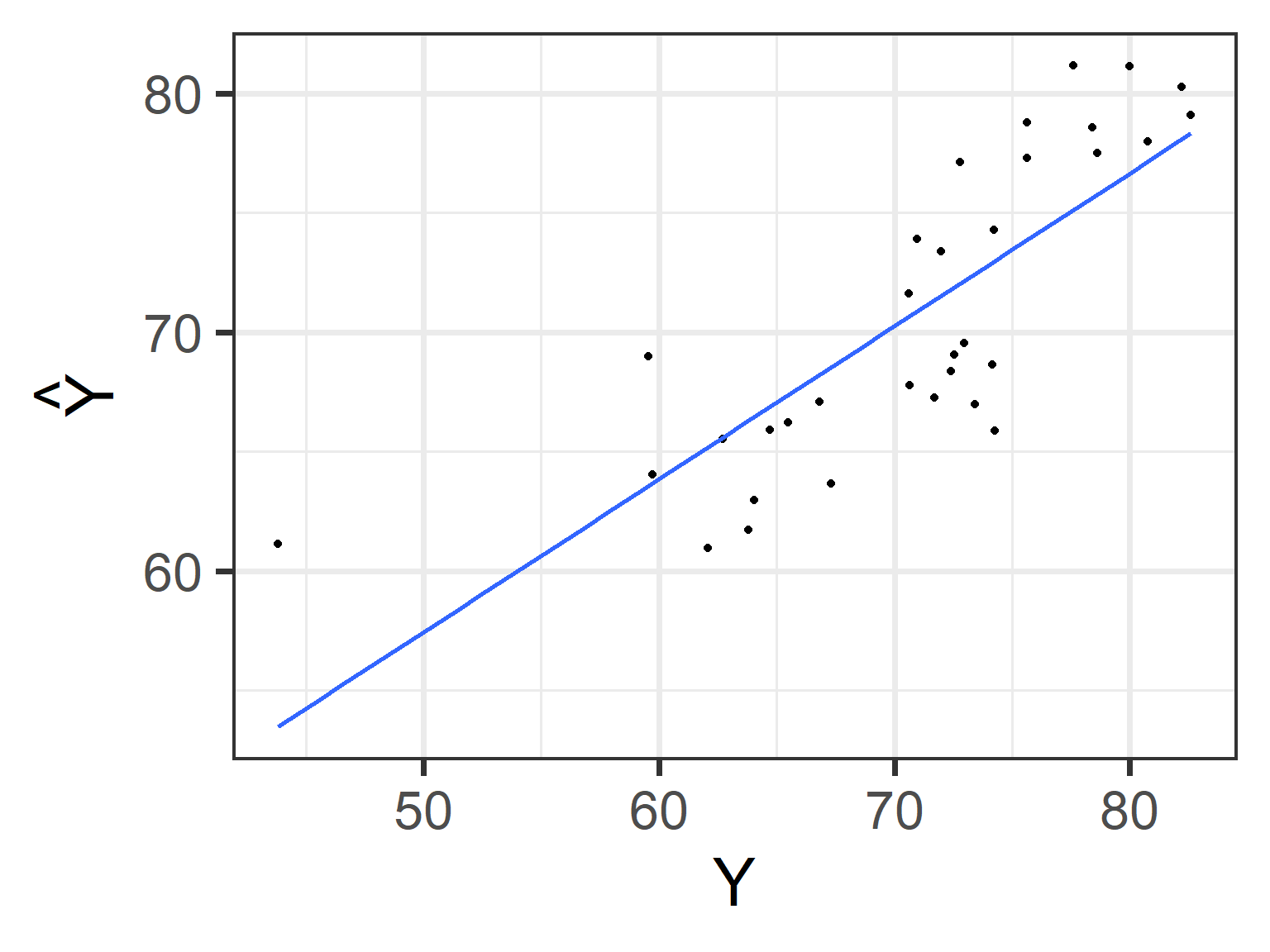

The relationship between \(Y_i\) and \(\hat{Y_i}\)

Code

model_info %>% ggplot(aes(x = lifeExp, y = .fitted)) +
  geom_point() + geom_smooth(se = F, method = "lm") +
  scale_x_continuous("Y") + scale_y_continuous(expression(hat(Y))) + theme_bw(base_size = 30)

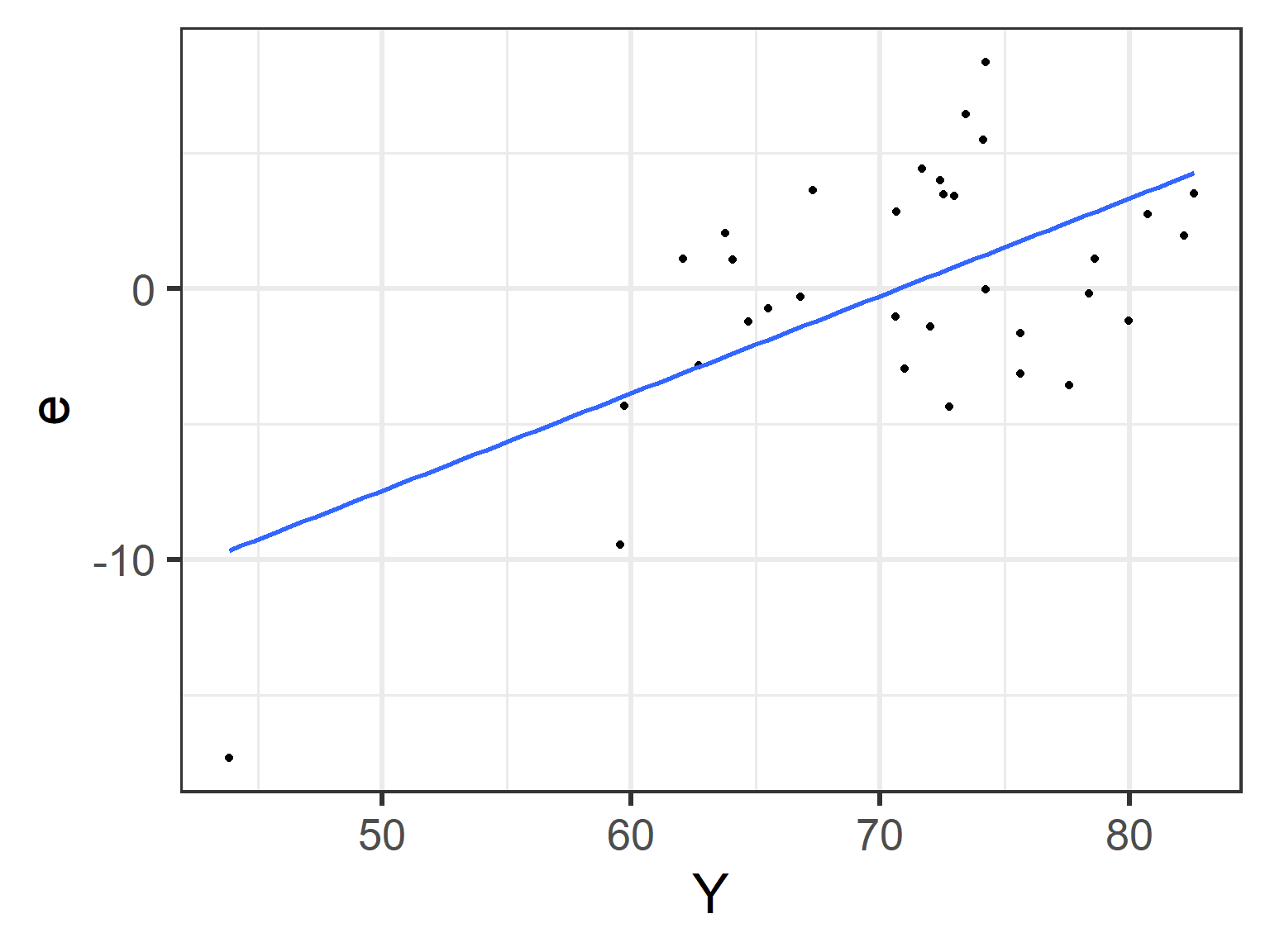

The relationship between \(Y_i\) and \(e_i\)

Code

model_info %>% ggplot(aes(x = lifeExp, y = .resid)) +
  geom_point() + geom_smooth(se = F, method = "lm") +
  scale_x_continuous("Y") + scale_y_continuous("e") + theme_bw(base_size = 25)

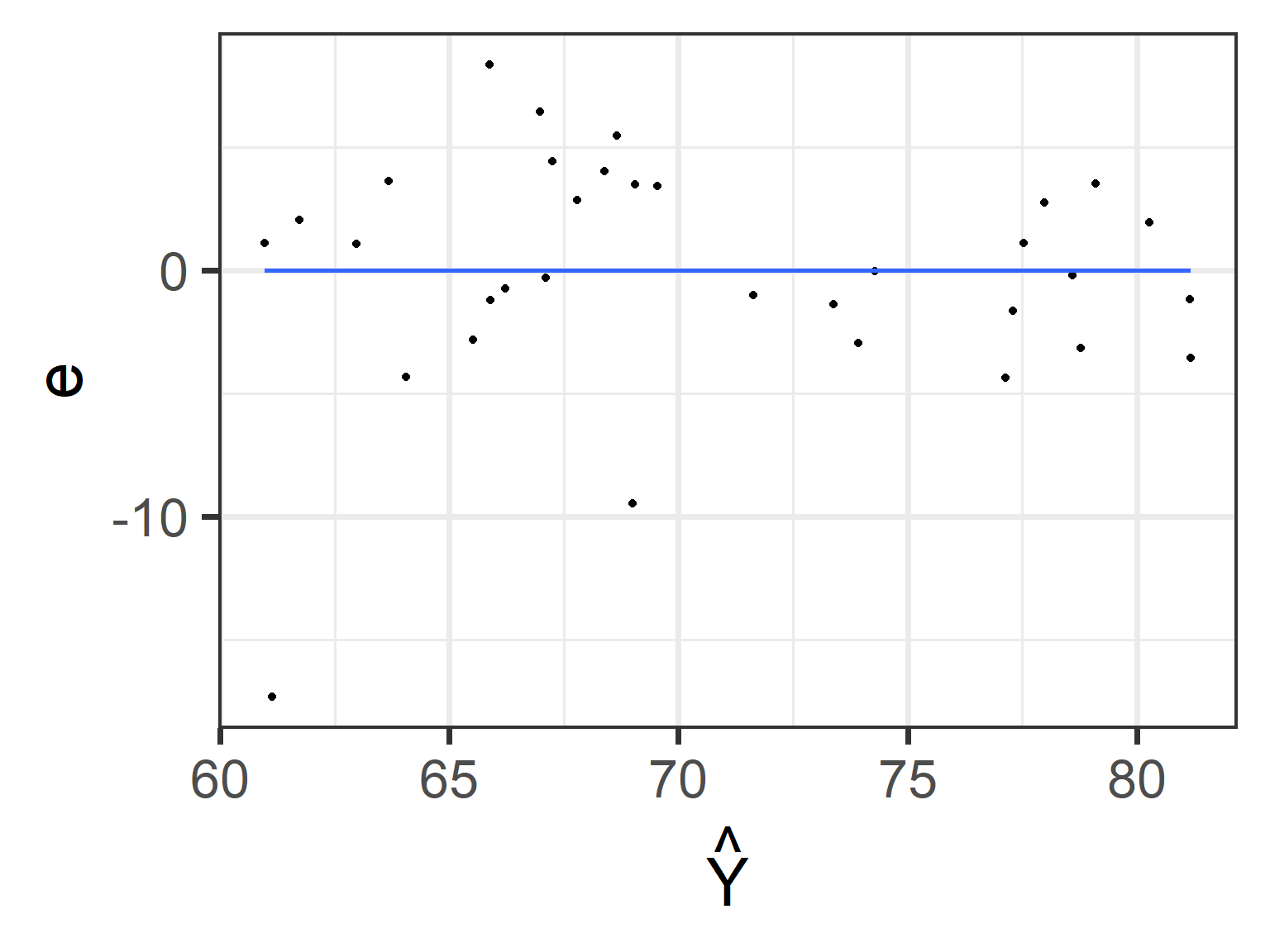

The relationship between \(\hat{Y_i}\) and \(e_i\)

Code

model_info %>% ggplot(aes(x = .fitted, y = .resid)) +
  geom_point() + geom_smooth(se = F, method = "lm") +
  scale_y_continuous("e") + scale_x_continuous(expression(hat(Y))) + theme_bw(base_size = 30)

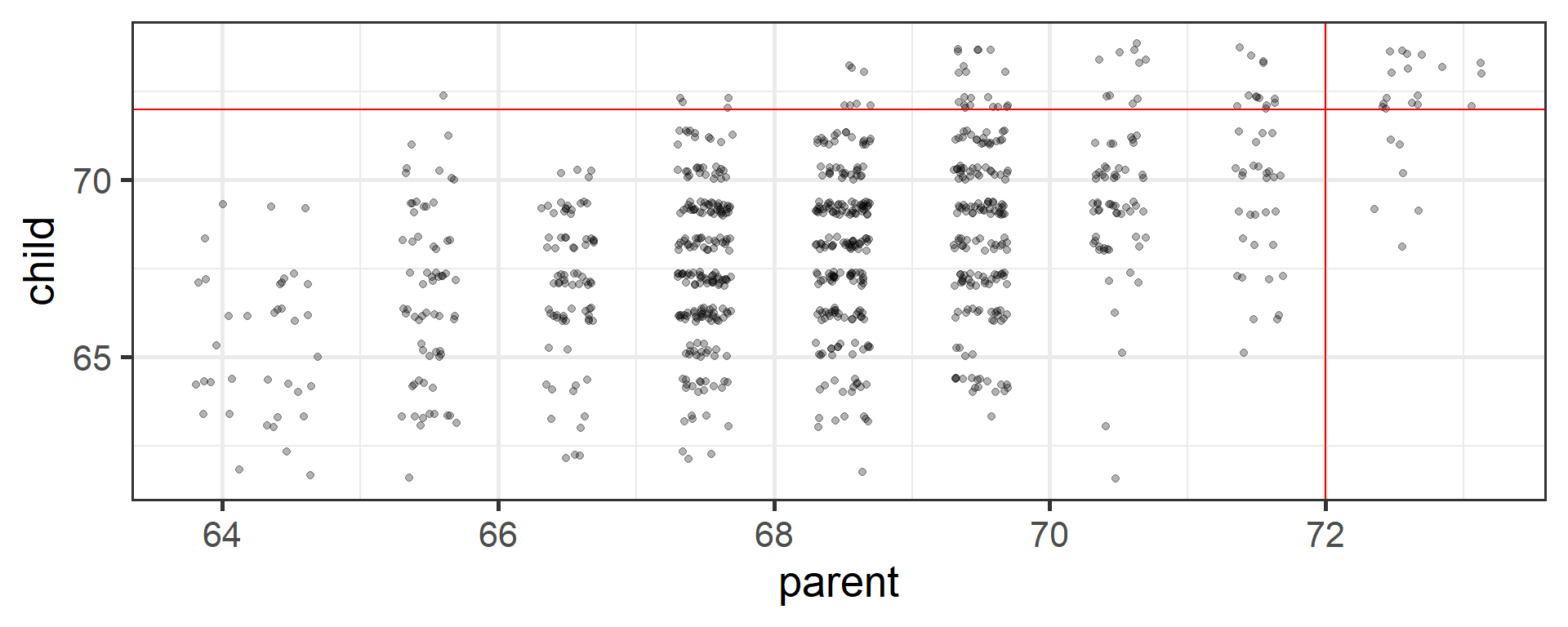

Regression to the mean

An observation about heights was part of the motivation to develop the regression equation: If you selected a parent who was exceptionally tall (or short), their child was almost always not as tall (or as short).

Code

library(psychTools)
library(tidyverse)
heights = psychTools::galton
mod = lm(child~parent, data = heights)
point = 902
heights = broom::augment(mod)


heights %>%
  ggplot(aes(x = parent, y = child)) +
  geom_jitter(alpha = .3) +
  geom_hline(aes(yintercept = 72), color = "red") +
  geom_vline(aes(xintercept = 72), color = "red") +
  theme_bw(base_size = 20)

Regression to the mean

This phenomenon is known as regression to the mean. This describes the phenomenon in which an random variable produces an extreme score on a first measurement, but a lower score on a second measurement.

Regression to the mean

This can be a threat to internal validity if interventins are applied based on first measurement scores.

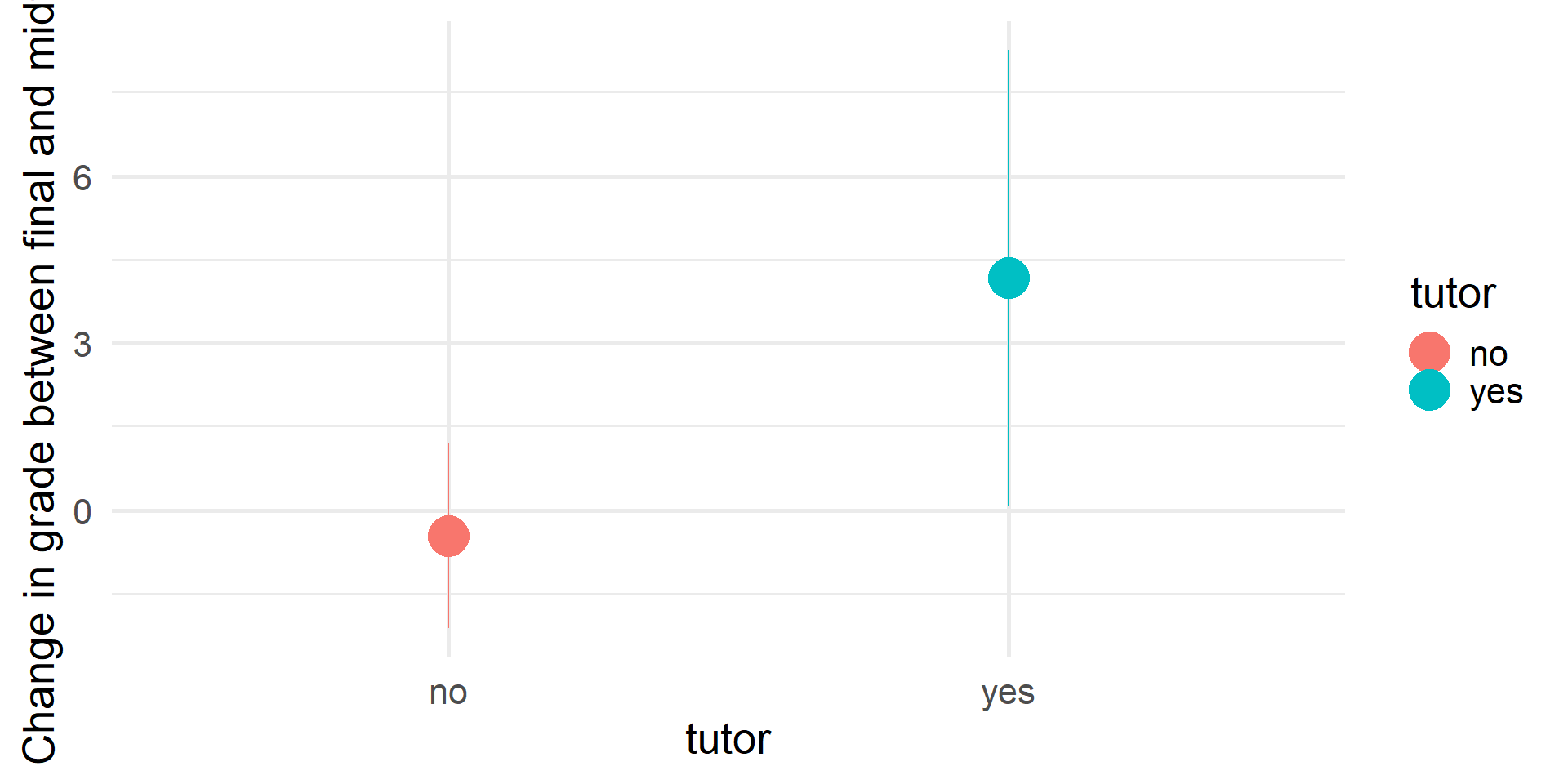

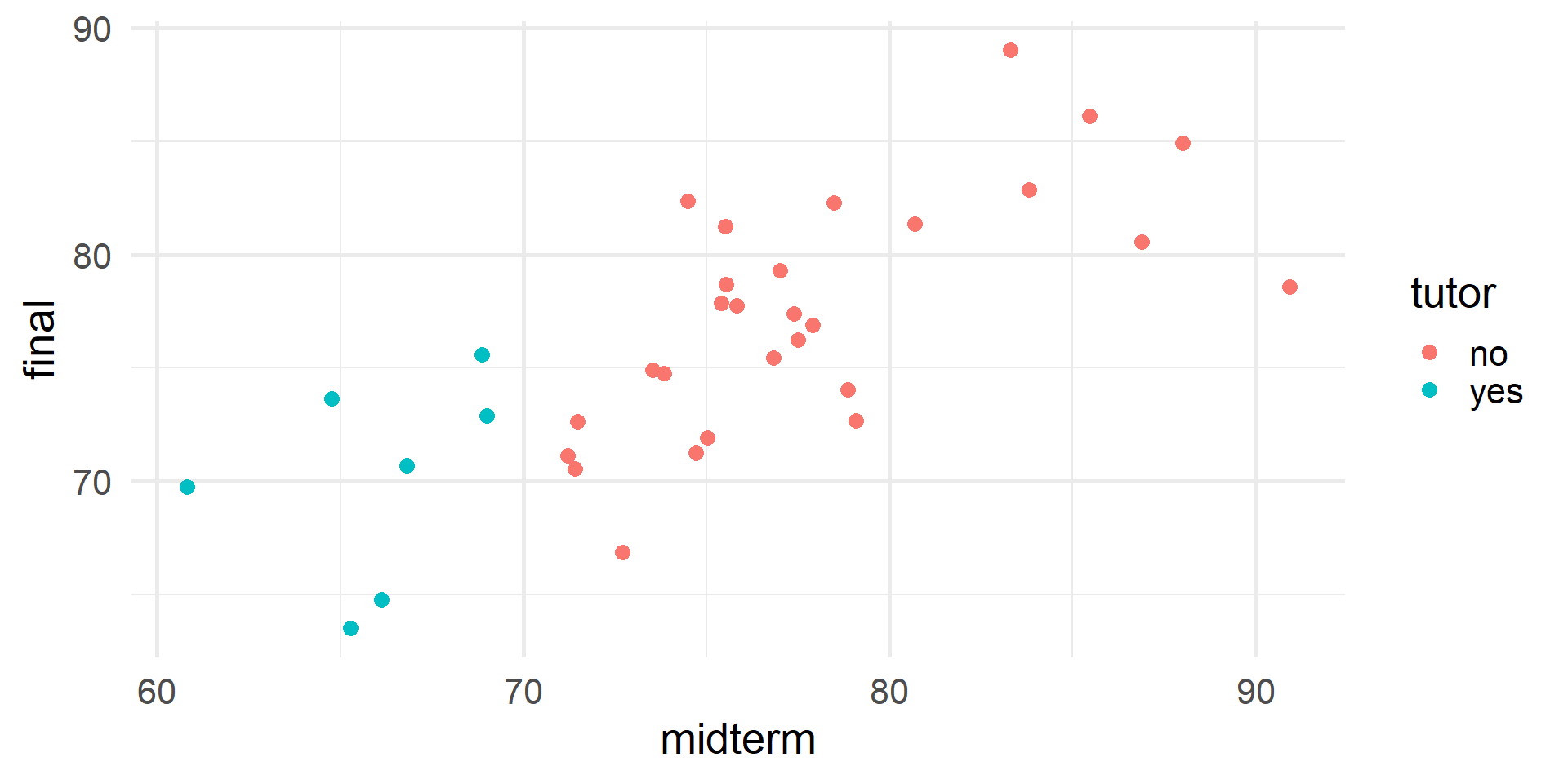

Example in R

Let’s use the school dataset that we have in previous classes

school <- import("https://raw.githubusercontent.com/dharaden/dharaden.github.io/main/data/example2-chisq.csv")

Try out the sjPlot functions for regression: Link to all functions

Next time…

• More Regression!
• Group Work!
